TRUCK SCALES
EMERY WINSLOW ROADWEIGH II SERIES
Hydrostatic load cells are guaranteed for life against failure from water, high-pressure washdown, lightning, rodents, power surges, and RFI/EMI. Hydrostatic 136 Load Cells: 10-year warranty against defects in materials and workmanship. Concrete or Steel Deck: 5-year warranty against defects in materials and workmanship. All other Components: 2-year warranty against defects in materials and workmanship.
Steel or concrete (field pour) decks
Top access makes it easy for new or existing pit installations
Steel weighbridge design using 12″ I-beam design with standard 5/16″ diamond plate
Concrete weighbridge design using steel-reinforced 6″ concrete – POURED ON-SITE
EMERY WINSLOW ROADWEIGH QUICK CLEAN
Hydrostatic load cells are guaranteed for life against failure from water, high-pressure washdown, lightning, rodents, power surges, and RFI/EMI. Hydrostatic 136 Load Cells: 10-year warranty against defects in materials and workmanship. All Other Components: 2-year warranty against defects in materials and workmanship.
Quick Deck Removable and Replacement Mechanism for Quick Clean of Shallow Pit
Steel weighbridge design using 12″ I-beam design with 3/8″ diamond plate
Top access to load cells
Understanding Hydrostatic™ Technology
Hydrostatic™ technology, an Emery Winslow exclusive, combines state-of-the-art electronic instrumentation with virtually indestructible Hydrostatic load cell weight sensing for a system with no electronics in the area of greatest potential abuse - the scale platform. Hydrostatic™ design allows the sealed Hydrostatic weight signals to be transmitted to a clean, controlled area where the signals are totalized and converted into a single electronic signal, which in turn drives the scale's digital weight indicator.

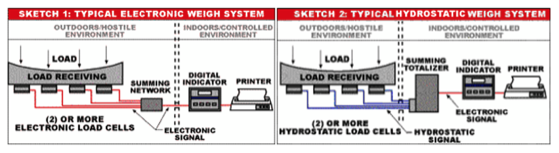

Hydrostatic™ Weighing System Sketches #1 and #2 are simplified schematics of a typical multi-load weigh system. Sketch #1 is an electronic load cell schematic and Sketch #2 is a Hydrostatic™ load cell schematic.
