TLB4 DIGITAL-ANALOG WEIGHT TRANSMITTER ( RS485 )

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

  • RS485 port (Modbus RTU/Laumas ASCII protocol)

  • 2 logic inputs, 3 relay outputs

  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

  • Mounting on Omega/DIN rail for front/back panel

TLB4 CANOPEN DIGITAL WEIGHT TRANSMITTER (RS485 - CANopen )

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

  • CANopen port

  • RS485 port (Modbus RTU/Laumas ASCII protocol)

  • 2 logic inputs, 3 relay outputs

  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

  • Mounting on Omega/DIN rail for front/back panel

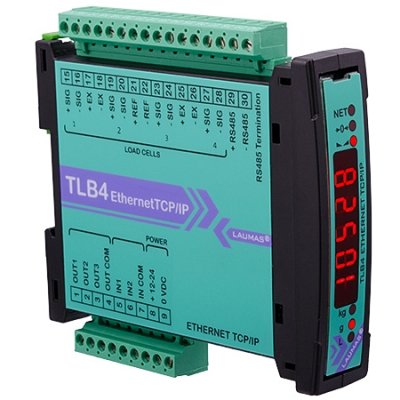

DIGITAL WEIGHT TRANSMITTER (RS485 - Ethernet TCP/IP )

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

  • Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)

  • RS485 port (Modbus RTU/Laumas ASCII protocol)

  • 2 logic inputs, 3 relay outputs

  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

  • Mounting on Omega/DIN rail for front/back panel
