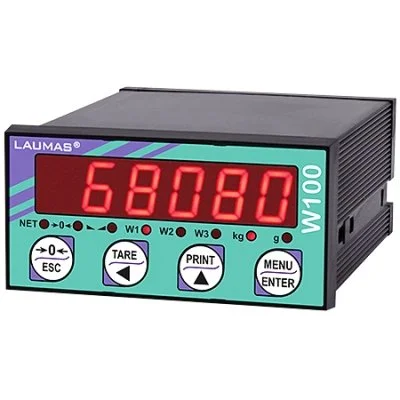

W100 WEIGHT INDICATOR

  • Panel mounting

  • Six-digit red LED display, 14 mm height

  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)

  • 3 logic inputs, 5 relay outputs

  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)

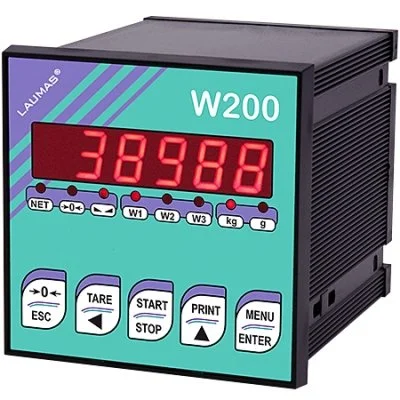

W200 WEIGHT INDICATOR (for weighing and batching)

  • Possible installations: panel

  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas

  • Six-digit red LED display, 14 mm height

  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)

  • 3 logic inputs, 5 relay outputs

  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)

  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.

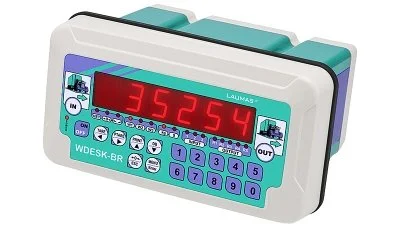

WDESK-BR WEIGHBRIDGE INDICATOR

  • Possible installations: desk, wall

  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.

  • Six-digit red LED display, 20 mm height

  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)

  • 2 logic inputs, 4 relay outputs

  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

  • Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request
